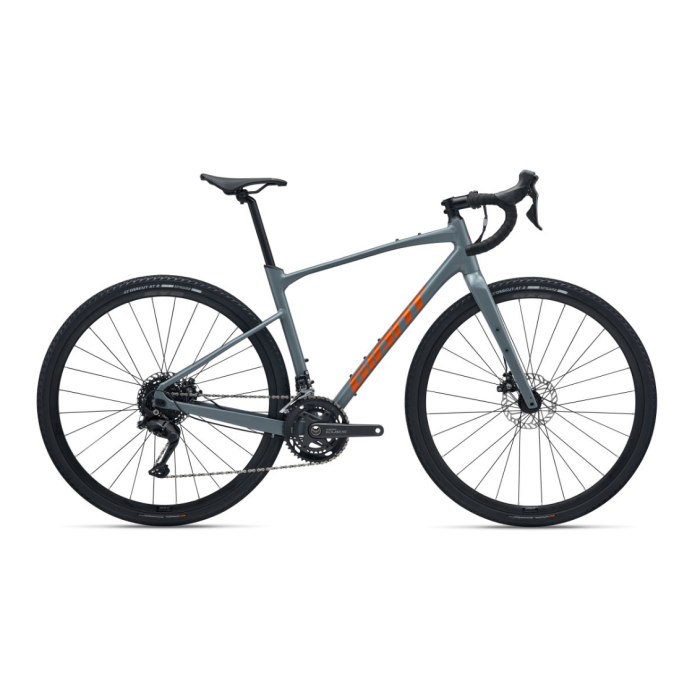

Giant Revolt 2 Ocean Storm 2026 - M/L
- ColourOcean Storm
- EAN4711291239715
£1,239.99
In Stock
Delivery Available
Delivery Available
Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Seat Tube Length (mm): 490
Seat Tube Angle: 73.0°
Top Tube Length (mm): 575
Head Tube Length (mm): 165
Head Tube Angle: 72.0°
Fork Rake (mm): 50
Trail (mm): 65 | 68
Wheelbase (mm): 1035 | 1045
Chain Stay Length (mm): 430 | 440
Bottom Bracket Drop (mm): 80 | 81
Stack (mm): 602
Reach (mm): 391
Stand Over Height (mm): 769 | 776
Handlebar Width (mm): 440
Stem Length (mm): 80
Crank Length (mm) : 172.5
Wheel Size: 700x 42C |
Size: M/L
Colour: Ocean Storm
Frame: ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar: Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips: cork tape with gel
Stem: Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost: Giant D-Fuse, alloy, 14mm offset
Saddle: Giant Grit
Pedals: PEDALS NOT SUPPLIED
Shifters: Shimano CUES U3030, 2x9
Front Derailleur: Shimano CUES U6030
Rear Derailleur: Shimano CUES U4020
Brakes: Shimano BR-RS305 mechanical, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano CUES U3030
Cassette: Shimano CS-LG300, 11x36
Chain: KMC X11
Crankset: Shimano FC-U6030-2, 32/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket: Shimano, threaded
Rims: Giant S-X2, alloy
Hubs: Giant alloy, 12mm thru-axle
Spokes: stainless
Tyres: Giant CrossCut AT 2, 700x38c, tubeless
Extras: tubeless prepared
Max Tyre Clearance: 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.
Seat Tube Angle: 73.0°
Top Tube Length (mm): 575
Head Tube Length (mm): 165
Head Tube Angle: 72.0°
Fork Rake (mm): 50
Trail (mm): 65 | 68
Wheelbase (mm): 1035 | 1045
Chain Stay Length (mm): 430 | 440
Bottom Bracket Drop (mm): 80 | 81
Stack (mm): 602
Reach (mm): 391
Stand Over Height (mm): 769 | 776
Handlebar Width (mm): 440
Stem Length (mm): 80
Crank Length (mm) : 172.5
Wheel Size: 700x 42C |
Size: M/L
Colour: Ocean Storm
Frame: ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar: Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips: cork tape with gel
Stem: Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost: Giant D-Fuse, alloy, 14mm offset
Saddle: Giant Grit
Pedals: PEDALS NOT SUPPLIED
Shifters: Shimano CUES U3030, 2x9
Front Derailleur: Shimano CUES U6030
Rear Derailleur: Shimano CUES U4020
Brakes: Shimano BR-RS305 mechanical, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano CUES U3030
Cassette: Shimano CS-LG300, 11x36
Chain: KMC X11
Crankset: Shimano FC-U6030-2, 32/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket: Shimano, threaded
Rims: Giant S-X2, alloy
Hubs: Giant alloy, 12mm thru-axle
Spokes: stainless
Tyres: Giant CrossCut AT 2, 700x38c, tubeless
Extras: tubeless prepared
Max Tyre Clearance: 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.
| GTIN | 4711291239715 |
|---|
